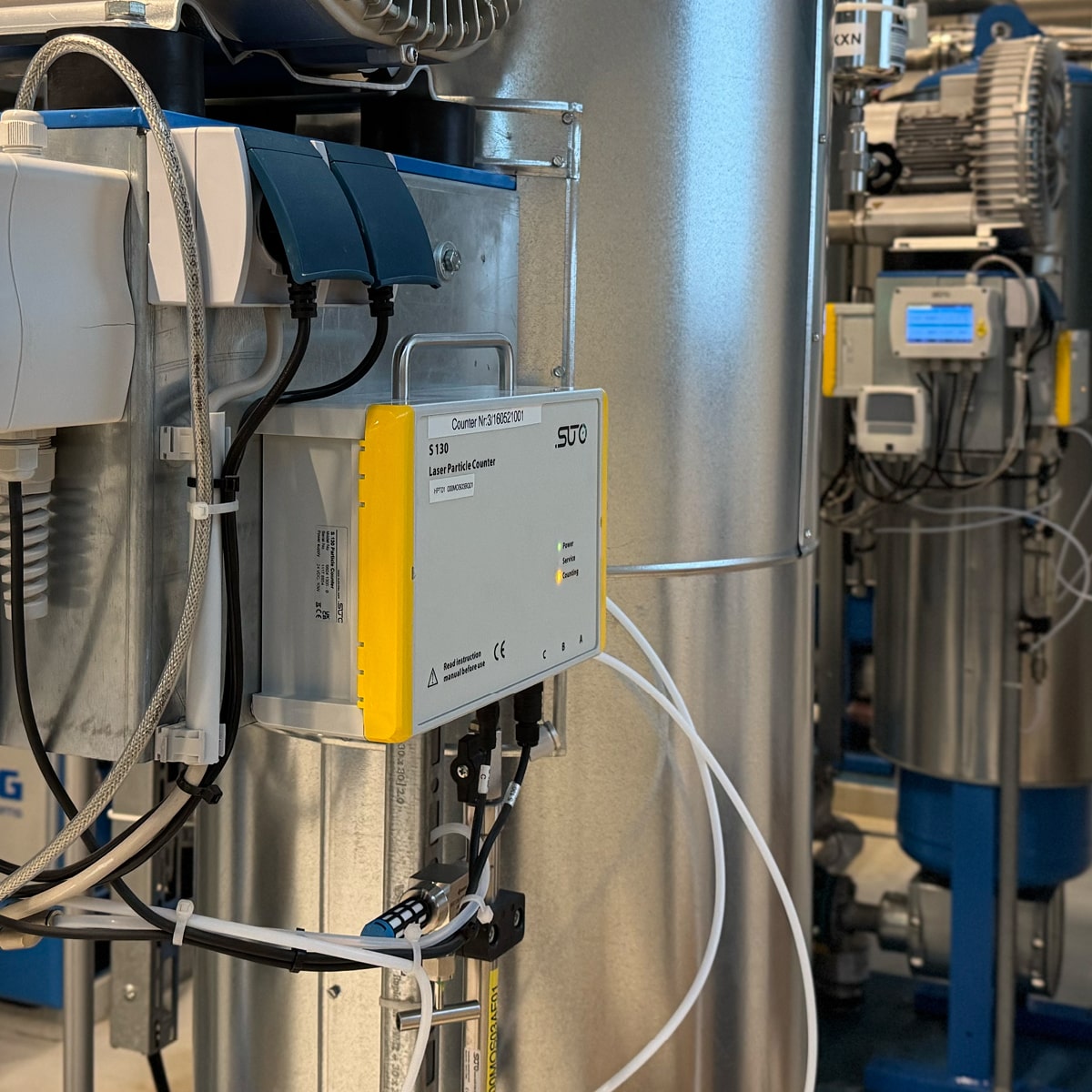

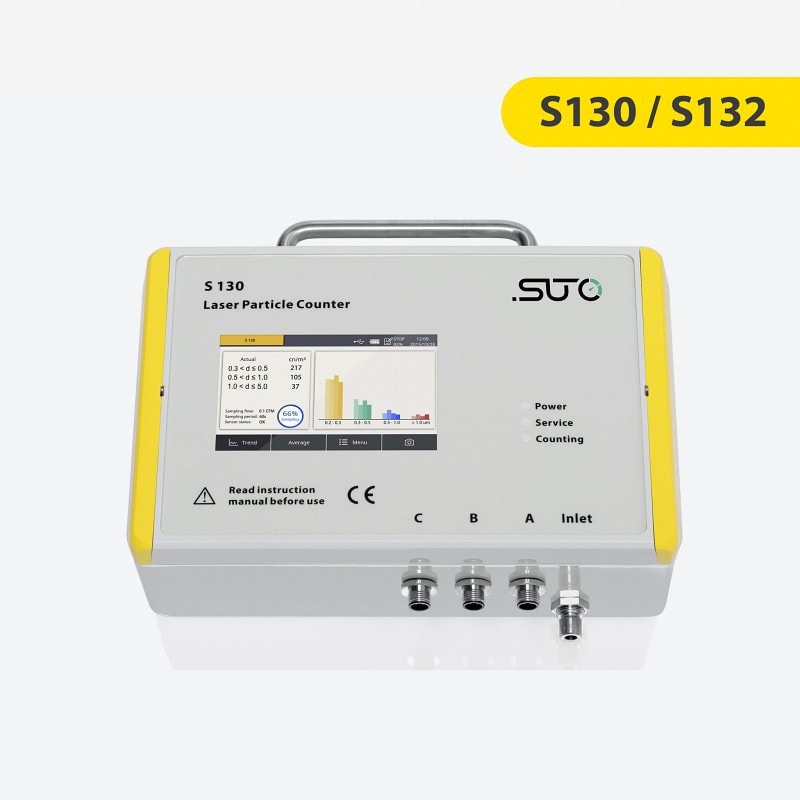

S130 Laser Particle Counter

Designed for 24/7 continuous operation, the S130 is the next generation in compressed air monitoring technology. With alternatives available ambient condition measurement via internal vacuum pump, there are options available for numerous applications. S130 can easily fulfill the requirements stipulated in the compressed air standard ISO 8573-4. Measurement values represent the particle counts per ft³, l or m³, or in μg/m³ as needed. Settings and measurements are available in the integrated display, an external SUTO display, and service software.

Benefits

No Worrying About Air Quality

constant monitoring reduces risk

Find and Fix Problems Faster

With real-time monitoring and alerts

Improve Overall System Health

Keep compressed air cleaner

Easier Compliance

Provable historical data

Applications

Medical air
Pharmaceuticals
Breathable air for rescue workers and divers
Food and beverage
Semiconductor fabs
Conveyance of hygroscopic food
High tech processes

Specs

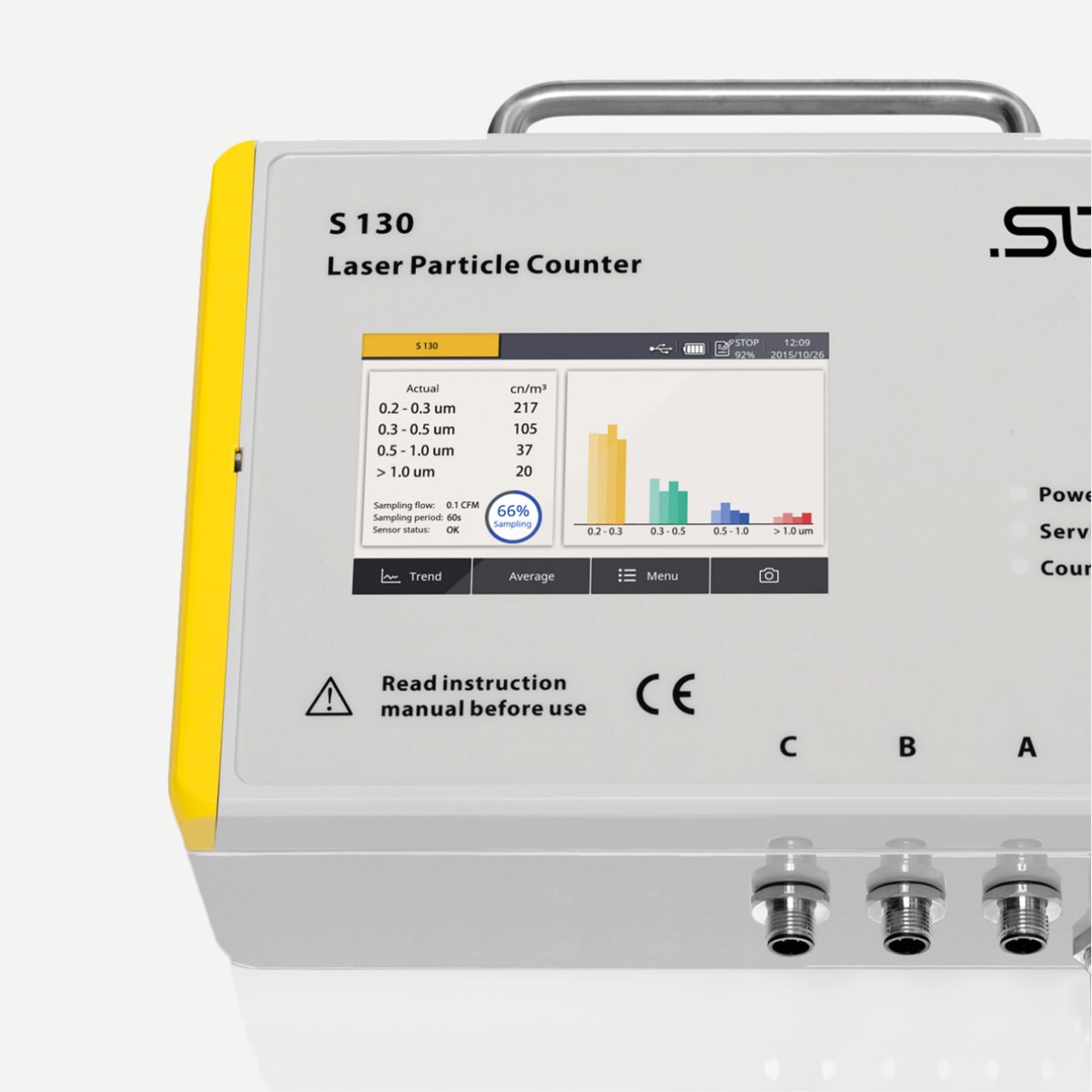

Measuring unit: 5” colour touchscreen with data logger, guided measurement and report generator function. All combined and integrated with the multiple sensor system.
Process connection: Connection tube 1.5 m with compressed air coupling
Operating pressure: 0.3 … 1.5 MPa
Ambient temperature: 0 … +50 °C
Storage & Transport temperature: -10 … + 70 °C
Medium: Compressed Air, Nitrogen N2, Carbon dioxide CO2 (software setting)
Medium temperature: 0 … + 40 °C
Medium humidity: < 40 % rH, no condensation
Reference settings: ISO1217 20 °C 1000 mbar
UV lamp lifetime (oil vapor sensor): 6000 working hours
Power supply: Mains supply adapter (AC/DC); Input: 100 … 240 VAC, 50/60 Hz, 1.4 A; Output: 24 VDC, 2.5 A, 60 W max.

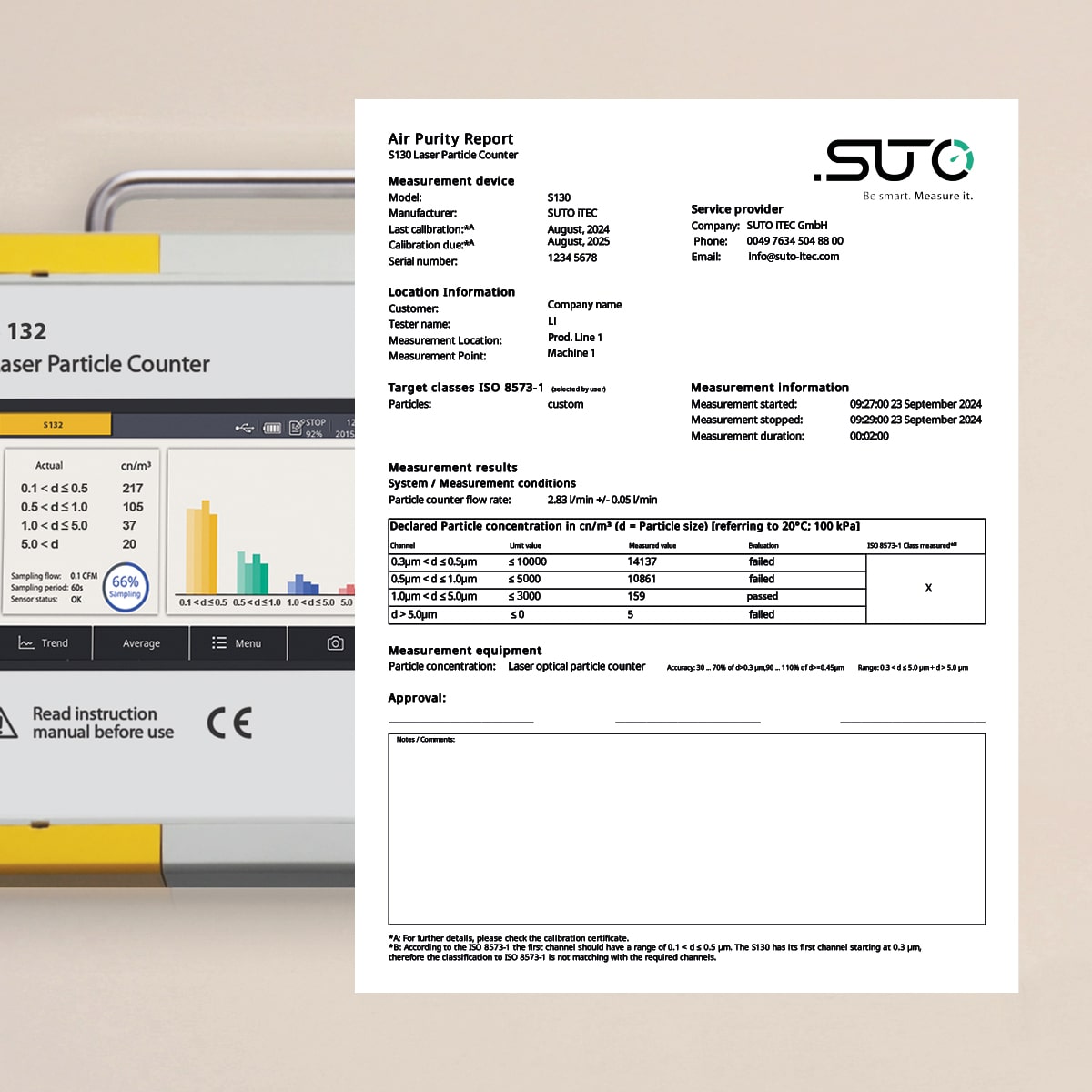

Data logger: 100 mio. values, Integrated report generator for PDF export
Measured values: Temperature, Pressure, Oil vapor, Dew point, Particle concentration
Interface: USB, Modbus TCP
Display: Touchscreen, Size: 5“, Resolution: 800 x 480 px
Dew point sensor: Dual-sensor technology (QCM & Polymer)
Particle sensor: Laser optical detection
Oil vapor sensor: PID (Photoionisation detector)
Measurement duration: min. 35 minutes (no upper limit)
Sampling rate: 1 sample / sec.
Classification: IP65 (cover lid closed)
Casing material: PC + ABS, Al alloy
Weight: 9.8 kg
EMC: IEC 61326-1
Measurement range: Particle counter 0.1 < d ≤ 0.5 μm ; 0.5 < d ≤ 1.0 μm ; 1.0 < d ≤ 5.0 μm
Measurement range Dew point sensor: -100 … +20 °C Td
Measurement range Oil vapor sensor: 0.003 … 10.000 mg/m3
Detection limit oil vapor sensor: 0.003 mg/m3
Resolution oil vapor sensor: 0.001 mg/m3
Accuracy Particle measurement: 50 % @ 0.1 < d ≤ 0.15 μm 100 % @ 0.15 μm > d per JIS
Accuracy Dew point measurement: ±2 °C Td
Accuracy Oil vapor measurement: 5 % of value ± 0.003 mg/m3

General Specifications Isokinetic sampling device

Measuring unit: Sampling pipe with integrated isokinetic sampling tube, flow regulation and control by integrated flow sensor, to be used for particle measurements according to ISO8573
Process connection: Connection tube 1.5m with compressed air coupling; 1 compressed air coupling inlet; 2 quick connections to S600; connection tubes to S600 included
Operating pressure: 0.3 … 1.5 MPa
Ambient temperature: 0 … +50 °C
Storage & Transport temperature: -10 … +70 °C
Flow sensor: Thermal mass flow, only for isokinetic flow setup, no system-flow measurement
Interface: Communication interface for S600, cable included, M8
Accuracy: 3 % o. RDG
Purge flow: Regulated by needle valve, setup guided by S600
